Electronic Ballast/Choke 18W

Electronic Ballast/Choke 18W

(0 review)
Minimum order quantity - 10 Nos

Specification -

-Input Parameter
  • Input Voltage (Vac) - 220~240Vac
  • Input Frequency - 50/60 Hz
  • Input Current (In) - 0.125 A
  • Input Wattage(W) - 18w
- Output Parameter
  • Lamp Voltage - 55V
  • Lamp Current - 0.310A
  • Lamp Wattage - 17w
  • Lamp Operating Frequency - 44Khz
-Protection
  • Open Lamp Protection - Yes
  • Over Current Protection - Yes
  • Output Short Circuit Protection - Yes

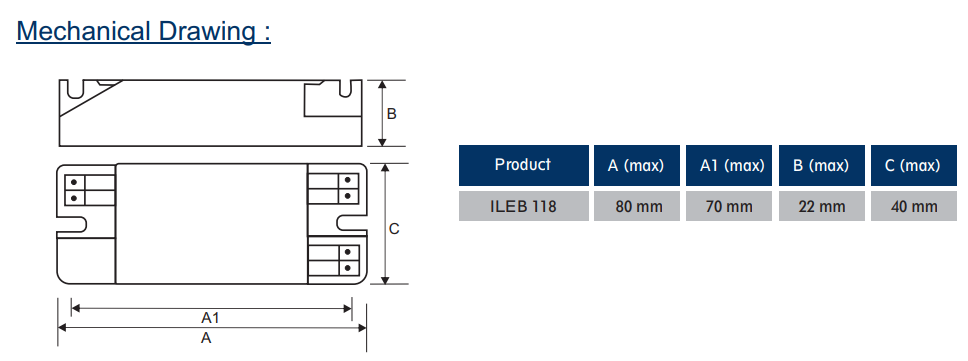

-Physical Characteristics
  • Box Dimensions (LXWXH)mm - 80 x 40 x 22
  • Mounting Hole Distance - 70.00 mm
  • Max. Operating Case Temp. (tc) - 75°C
  • Operating Ambient Temp. range (ta) - 10 °C to 40°C


Add to cart
Add to wishlist
Price
₹ 130.00 ₹ 130.00 (Tax excluded)

Terms and Conditions
Taxes - Extra as applicable
Minimum order quantity - 10 Nos
Shipping: 3-5 Business Days
